OPC UA Middleware
Model-Driven Industrial Data Integration
An OPC UA middleware provides the semantic integration layer required to aggregate heterogeneous industrial systems, structure them through a unified information model and expose them through a coherent OPC UA interface.
What Is an OPC UA Middleware?
An OPC UA middleware is a software layer between heterogeneous industrial systems and applications such as SCADA, MES, historians, cloud platforms and enterprise software. It aggregates data from different sources and represents it through a coherent OPC UA information model.
OPC UA (IEC 62541) provides communication services and information modeling mechanisms. A middleware brings these capabilities into an integration environment, separating source connectivity, semantic structure and application-facing interfaces. Its role extends beyond protocol conversion.
Why Industrial Systems Need Middleware
Differences in data structures, semantics and lifecycle management can lead to project-specific mappings and tightly coupled interfaces. As the number of connected systems grows, these point-to-point integrations become harder to maintain.
Heterogeneous sources
- PLCs and industrial controllers
- OPC Classic and existing OPC UA servers
- Fieldbus and industrial protocols
- Databases, historians and enterprise applications
A shared integration layer
A common information model and a unified OPC UA AddressSpace provide a stable interface for consuming applications.
- Aggregate data across multiple sources
- Structure information through shared models
- Reduce coupling between sources and applications
Core Capabilities of a Model-Driven OPC UA Middleware
Data Aggregation
Represent multiple sources within one coherent OPC UA AddressSpace, independently of their original structures.
- OPC UA and OPC Classic servers
- Industrial protocols, including Modbus, S7 and EtherNet/IP
- Databases and historical systems
Information Modeling
Organize information using the concepts defined in IEC 62541 Parts 3 and 5. The model gives connected systems a consistent semantic structure.
- Nodes and References
- Types and Instances
- Namespaces
Runtime Execution
Depending on the implementation, a middleware can provide services that let applications interact with the model beyond reading values. OOUAMiddleware implements these services in its native OPC UA runtime.
- Methods and Events
- Alarms & Conditions
- Historical Access
Modular Integration
Extend connectivity and storage as integration requirements evolve, while keeping the information model separate from acquisition and persistence mechanisms.
- Protocol adapters and data connectors
- Storage modules
- Analytics integrations
The Architectural Role of OPC UA Middleware

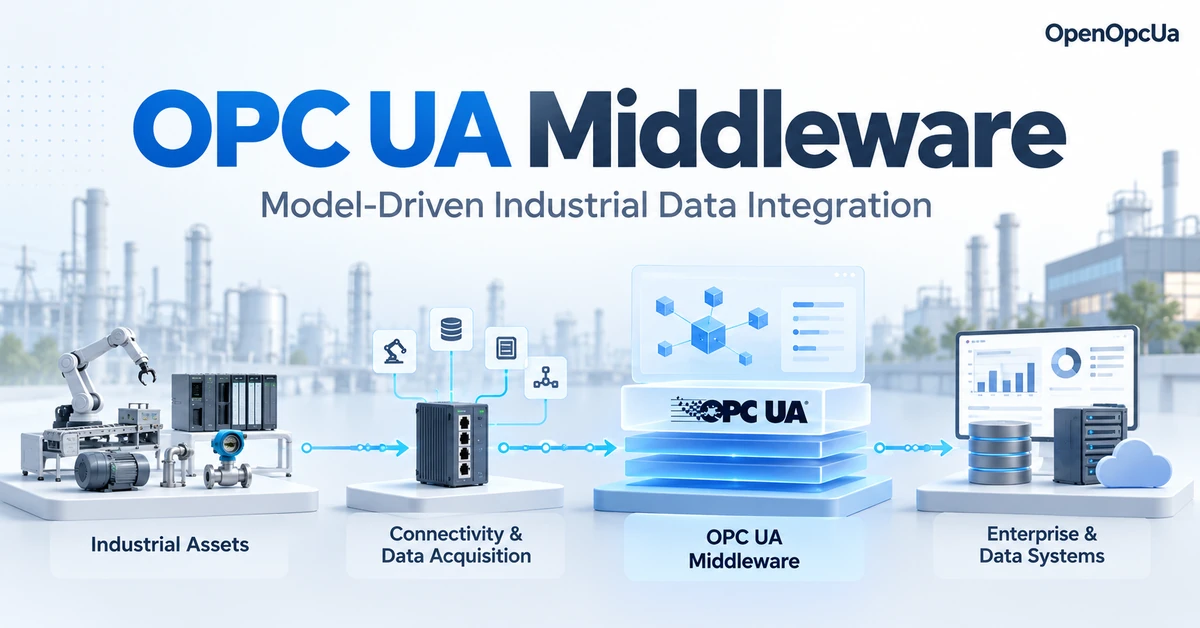

The middleware sits between data acquisition and higher-level consumers. It separates heterogeneous source connectivity from semantic modeling and the unified OPC UA interface exposed to applications.
Applications consuming this interface can include SCADA systems, MES platforms, industrial historians, cloud analytics and enterprise applications.
An integration boundary to secure
Security also depends on how industrial protocols are exposed, segmented and integrated. A middleware layer can reduce direct protocol exposure, but it does not replace network segmentation or the security configuration of connected systems. See Secure Deployment of Industrial Communication Protocols.
OOUAMiddleware as an Example
OOUAMiddleware is a model-driven industrial integration platform implementing OPC UA services according to IEC 62541. Its runtime loads NodeSet XML definitions, including types and deployed instances. Multiple information models can coexist within the same AddressSpace.
Information models at runtime
The model defines the AddressSpace structure independently of the protocols used to acquire data and the systems used to store it. Models are loaded and instantiated by the runtime without generating application code for each model.
Connectivity and persistence
- Virtual Protocol Interfaces (VPI) provide modular industrial connectivity.
- Virtual File Interfaces (VFI) connect the platform to persistence and historical storage solutions.
Explore OOUAMiddleware, its architecture, the runtime model and information modeling. A working example is available through the ProductionCell demonstration.
OPC UA Middleware vs Gateways, Servers and SDK-Based Implementations
These terms describe different responsibilities and implementation approaches. They are not mutually exclusive architectural categories.
Protocol gateway
Primarily connects systems using different communication protocols. Some gateway products also provide aggregation and information modeling capabilities.
OPC UA server
Exposes an AddressSpace and implements OPC UA services. Depending on its architecture, it may also support aggregation, complex models, Historical Access, Events and Methods.
OPC UA SDK
Provides software components for developers building OPC UA applications. The application developer defines how these components fit into the integration architecture.
OPC UA middleware
Provides an integration environment combining connectivity, information modeling, runtime services and extension mechanisms. A model-driven implementation loads model definitions into its runtime.
The distinction is architectural rather than a separate OPC UA conformance category. For the implementation choices used by OOUAMiddleware, see OPC UA Middleware Architecture.
FAQ
What is an OPC UA middleware?
An OPC UA middleware is a software layer that aggregates heterogeneous industrial data sources, structures them through an OPC UA information model and exposes them through a coherent OPC UA interface. Unlike a simple gateway, it acts as a semantic integration layer within industrial architectures.
What is the difference between an OPC UA middleware and an OPC UA gateway?
An OPC UA gateway typically connects systems using different communication protocols. An OPC UA middleware generally provides a broader integration environment, combining connectivity, information modeling and runtime services. However, the distinction is architectural rather than normative: some gateway products provide advanced aggregation and modeling capabilities.
Why do industrial systems need an OPC UA middleware?
Industrial systems often combine PLCs, legacy servers, industrial protocols, databases and enterprise applications. Without a middleware layer, integration becomes fragmented and difficult to maintain. An OPC UA middleware provides a stable and scalable integration layer across these heterogeneous sources.
How does a model-driven OPC UA middleware differ from a code-first approach?
In a code-first approach, the information model is embedded into application code. In a model-driven middleware, the information model remains a first-class architectural asset, separated from implementation details. This improves maintainability, architectural consistency and long-term evolvability.
Can an OPC UA middleware execute runtime behavior?
Yes. An OPC UA middleware can support runtime behavior such as methods, alarms and conditions, events and historical access. This is a key difference between a simple static data exposure layer and a model-driven runtime architecture.
Is OOUAMiddleware an OPC UA SDK?
No. OOUAMiddleware is not a simple SDK. It is an industrial OPC UA middleware implementation designed around model-driven architecture, runtime NodeSet execution and strong separation between information model and implementation.
What are the benefits of a model-driven OPC UA middleware?
A model-driven OPC UA middleware improves scalability, maintainability and semantic consistency. It reduces coupling between industrial connectivity, information modeling and application-facing interfaces, making architectures easier to evolve over time.
Where does an OPC UA middleware sit in an industrial architecture?
An OPC UA middleware typically sits between data acquisition layers and higher-level systems such as SCADA, MES, historians, analytics platforms or enterprise applications. It isolates heterogeneous source connectivity from the unified OPC UA interface exposed to consumers.
From OPC UA Middleware Concepts to Industrial Deployment
OOUAMiddleware implements these integration principles through a configurable industrial runtime. Continue with the platform documentation, explore the model-driven architecture or evaluate the ProductionCell demonstration.
